Carnac Megaliths: Drone & LiDAR Find Hidden Stones

The legendary standing stones of Carnac in Brittany have guarded their prehistoric secrets beneath the French soil for over six millennia. Modern researchers have traded heavy pickaxes for non-invasive technology like LiDAR drones, electromagnetic induction, and ground-penetrating radar. These cutting-edge scans are revealing hundreds of forgotten menhirs, buried foundation sockets, and ceremonial hearths hidden right under our feet.

Carnac’s silent granite army

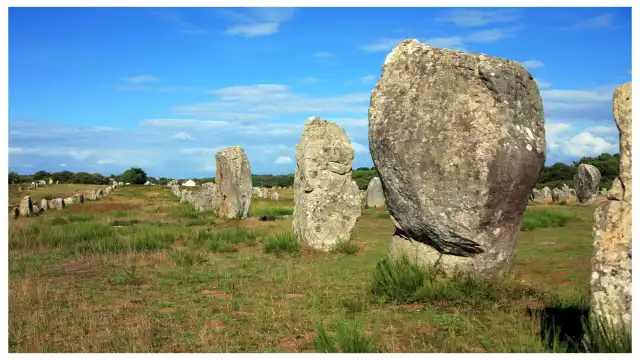

Carnac’s towering Neolithic granite menhirs in Brittany. Source: Hiroshi Higuchi / Getty Images

If you take a stroll through the windswept fields of southern Brittany, you quickly run into one of the weirdest sights on Earth. More than 3,000 colossal granite blocks stretch in neat, parallel columns for over four kilometers across the countryside.

Old local folklore had plenty of colorful ways to explain them. Some villagers claimed the stones were a Roman legion frozen in place by the wizard Merlin. Others swore they were pagan soldiers struck to stone by Saint Cornelius while chasing him to the sea.

THE 4 MAIN VISIBLE CARNAC ALIGNMENTS

Why did Stone Age farming communities drag hundreds of tons of solid rock across the landscape to build these avenues?

Getting solid answers has always been tricky. Brittany’s acidic soil eats away organic relics like human bones, antlers, and wooden tool handles, making traditional carbon dating nearly impossible across the visible rows. For over a century, archaeologists could only guess at the real timeline.

Peering beneath the turf

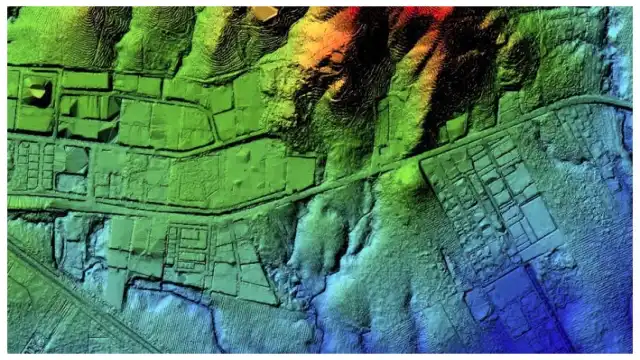

LiDAR elevation scan revealing hidden landscape anomalies. Source: JOUAV

Rather than tearing up protected pastures with bulldozers, geophysicists from institutions across France unleashed a suite of non-destructive imaging tools.

How do you look through meters of solid dirt without moving a single pebble? You combine three distinct sensory layers to create a 3D digital x-ray of the ground.

1. Multi-spectral & drone-mounted LiDAR

LiDAR (Light Detection and Ranging) pulses hundreds of thousands of laser beams per second from low-flying drones down to the earth. By filtering out trees, tall grass, and modern hedges, software generates a bare-earth digital elevation model.

Microscopic depressions that look totally flat to the naked eye suddenly appear on screen as circular ditches, sunken enclosures, and prehistoric roadways.

2. Electromagnetic induction (EMI)

EMI equipment passes over the soil to measure two things at once: electrical conductivity and magnetic susceptibility. When ancient builders dug a hole into solid subsoil, filled it with loose organic dirt, or lit a heavy fire, they permanently altered the soil’s magnetic profile.

The sensor catches these hidden variations instantly, drawing high-contrast maps of underground activity.

3. Ground-penetrating radar (GPR)

GPR shoots high-frequency radio waves straight into the bedrock and clocks how fast they bounce back. Dense objects like granite stones reflect waves differently than loose topsoil or sand.

These echo scans allow archaeologists to calculate the exact depth, thickness, and shape of buried obstacles before anyone picks up a spade.

GEOPHYSICAL SCANNING METHODOLOGY

The Le Plasker breakthrough: finding the “Ghost stones”

The biggest surprise did not occur inside the fenced tourist parks. It happened just down the road in Le Plasker, located in neighboring Plouharnel.

When local authorities slated an empty plot of land for commercial business park development, cultural heritage teams moved in for a mandatory rescue survey. Surface sweeps showed nothing except plain grass.

Subsurface scans told a wildly different story.

Underneath the topsoil, the team discovered a large network of foundation pits — empty underground sockets where towering menhirs once stood before being dismantled centuries ago. Even though the stones were hauled off long ago for building barns or clearing roads, the packing stones and backfill dirt remained trapped inside the holes.

HOW ANCIENT FOUNDATION POCKETS PRESERVE CHRONOLOGY

Because these sockets acted like sealed time capsules, they sheltered tiny fragments of charcoal and unweathered sediment.

Using advanced radiocarbon testing and luminescence dating on these trapped samples, researchers finally pinned down an ironclad timeline. As highlighted in Discover Magazine’s reporting on Europe’s earliest stone monuments, the alignments date between 4600 and 4300 BC.

That makes the Carnac alignments over 6,000 years old — substantially older than Stonehenge and centuries before the first stone of the Great Pyramid of Giza was cut.

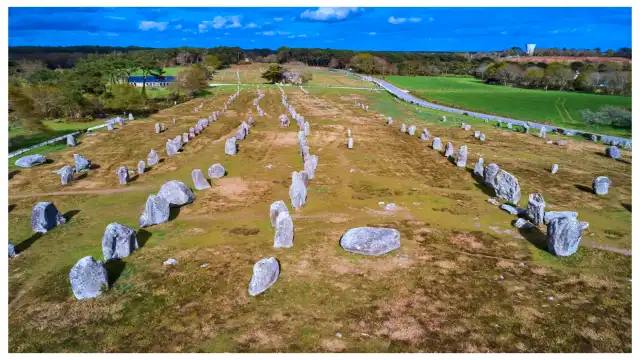

Aerial alignment geometry across the Brittany countryside. Source: Tuul & Bruno Morandi / Getty Images

What the subsurface surveys reveal about neolithic life

Finding buried stones changes our whole perspective on the builders. The new data, recently detailed by The Art Newspaper on newly mapped French standing stones, proves the monuments were far larger and more intricate than anything visible today.

Here is what the subterranean maps teach us:

• Continuous Sacred Corridors: Gaps that looked like empty meadows are actually full of fallen, buried, or quarried-out stone bases. The individual alignments once formed an unbroken ceremonial corridor stretching across the whole peninsula.
• Intentional Height Scaling: Builders followed a strict architectural blueprint.Scans confirm that the shortest stones were placed toward the east, steadily ramping up to four-meter monsters at the western terminals near enclosed stone circles.
• Ceremonial Hearths and Cooking Pits: Geophysical surveys picked up dozens of magnetic anomalies next to stone bases, revealing ancient hearths filled with fire-cracked rocks and ash. These were likely used for lighting nightly rituals or feeding massive work crews during construction.
• Building on Hunter-Gatherer Roots: At Le Plasker, a monumental Neolithic tomb was constructed directly over an older Mesolithic hunter-gatherer campsite dating back to 5600 BC. Early farming societies did not pick these spots at random; they built their monuments directly on top of lands their ancestors had held sacred for centuries.

Detailed chronologies published by the British Archaeological Jobs & Resources dating archive confirm that southern Brittany served as the dynamic engine for Europe’s entire megalithic phenomenon.

The big picture

We used to look at ancient monuments as isolated stone circles standing in lonely fields.

Drone imagery, LiDAR, and soil radar show that the surface stones represent merely the tip of the iceberg. The real monument is the entire landscape — a vast network of paths, burial mounds, stone rows, and gathering halls carved into the earth by our distant ancestors.

TIMELINE OF MEGALITHIC LANDMARKS

Every new pass of a drone and every radar pulse brings that forgotten world back into focus. By seeing what lies underneath, we are finally learning how these early architects organized their communities, honored their dead, and reshaped the wilderness around them.

For a visual breakdown of how multi-method geophysical scans have uncovered subterranean structures around Kerlescan and Manio, check out New Discoveries Around the Carnac Stones. Video provides helpful aerial footage and detailed maps explaining how recent radar and electromagnetic surveys locate buried Neolithic monuments in Brittany.
